Fullstack Multi-Agent Orchestration for GitHub Copilot: A Production-Ready Reference Architecture

Production-ready full-stack multi-agent orchestration using GitHub Copilot with custom agents, prompts, skills, reusable workflows, and human-in-the-loop review.

A single Copilot chat session trying to "build a fullstack feature" tends to lose track of requirements halfway through, mix frontend and backend code in one messy context, skip tests (or write tests that were never actually run), and ship without any real review pass.

Multi-agent orchestration fixes this by splitting the work into small, single-purpose agents, each with its own restricted toolset and its own clean context window, coordinated by one orchestrator agent that never writes code itself — it only plans the sequence and hands work off.

This is the same idea as a real engineering team: a PM writes the plan, an engineer researches unknowns, a frontend dev builds the UI, a backend dev builds the API, QA writes tests, a senior engineer reviews, and someone writes the release notes. Each role stays in its lane.

✨ Features

• 🤖 Multi-Agent orchestration
• 🧠 Planning and Research agents
• ⚛️ React + Tailwind frontend generation
• ☕ Spring Boot backend generation
• ✅ Automated testing (Jest/RTL + JUnit5/Mockito)
• 🔍 Review quality gate with a loop-back to fix
• 📄 Final delivery report (one human-facing summary)
• 🔁 Human-in-the-loop workflow
• 🛠️ VS Code & GitHub Copilot compatible

Table of Contents

1. The problem this solves
2. The agents (roles)
3. High-level flow diagram
4. Sequence diagram (message-by-message)
5. Anatomy of an agent file
6. How delegation actually happens
7. How to use it
8. Extending or customizing
9. Design principles worth remembering
10. Known limitations
11. Contributing

1. The problem this solves

A single Copilot chat session trying to "build a fullstack feature" tends to:

• lose track of requirements halfway through,
• mix frontend and backend code in one messy context,
• skip tests, or write tests that were never actually run,
• ship without any real review pass.

Multi-agent orchestration fixes this by splitting the work into small, single-purpose agents, each with its own restricted toolset and its own clean context window, coordinated by one orchestrator agent that never writes code itself — it only plans the sequence and hands work off.

This is the same idea as a real engineering team: a PM writes the plan, an engineer researches unknowns, a frontend dev builds the UI, a backend dev builds the API, QA writes tests, a senior engineer reviews, and someone writes the release notes. Each role stays in its lane.

2. The agents (roles)

Supporting (non-agent) files:

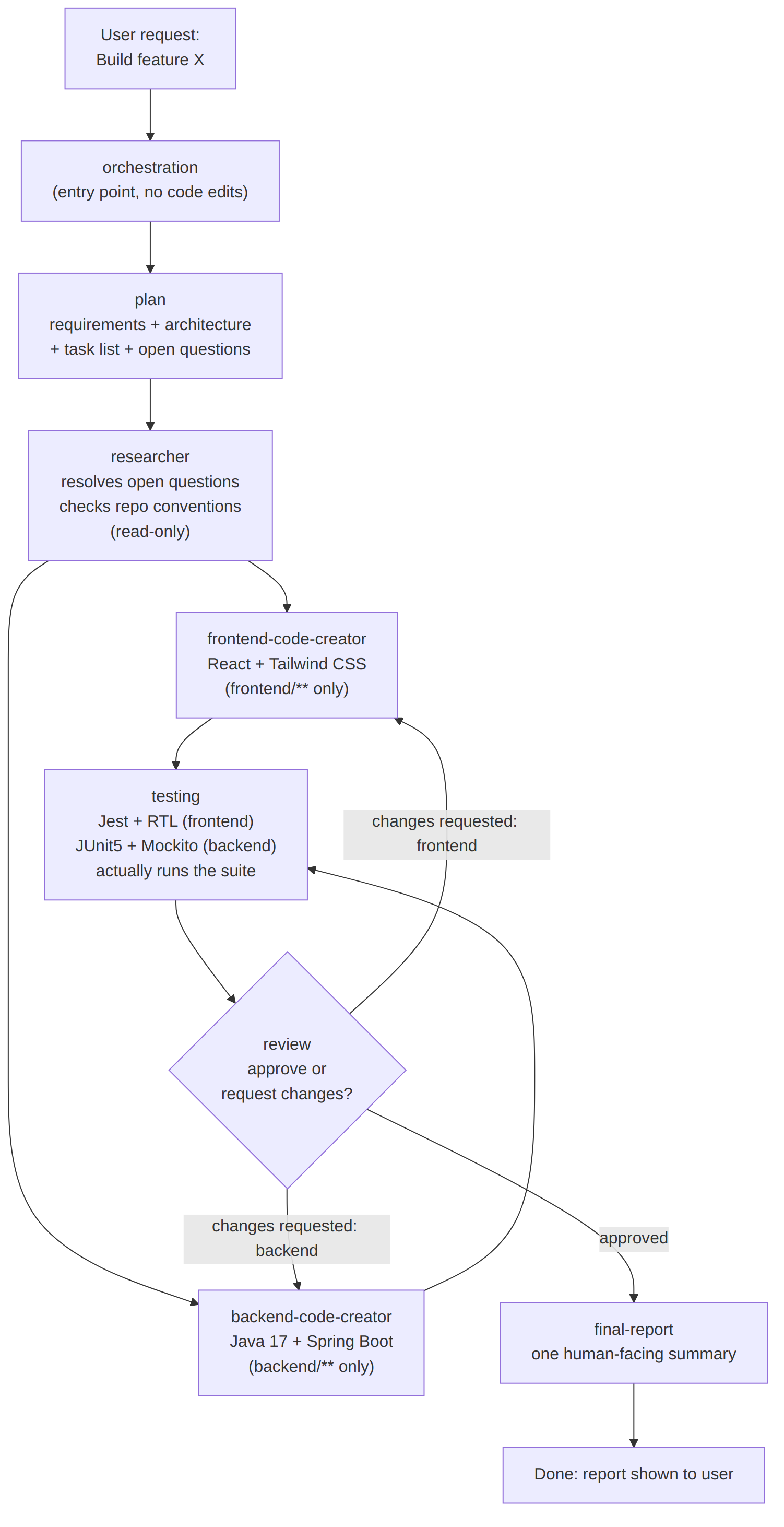

3. High-level flow diagram

Key points the diagram encodes:

• researcher fans out to both creator agents because frontend and backend work can proceed independently once open questions are resolved.
• review is a gate with a loop back — it's the only agent allowed to send work back to a creator agent, and it always says exactly what to fix.
• final-report only runs once, after approval — it's terminal.

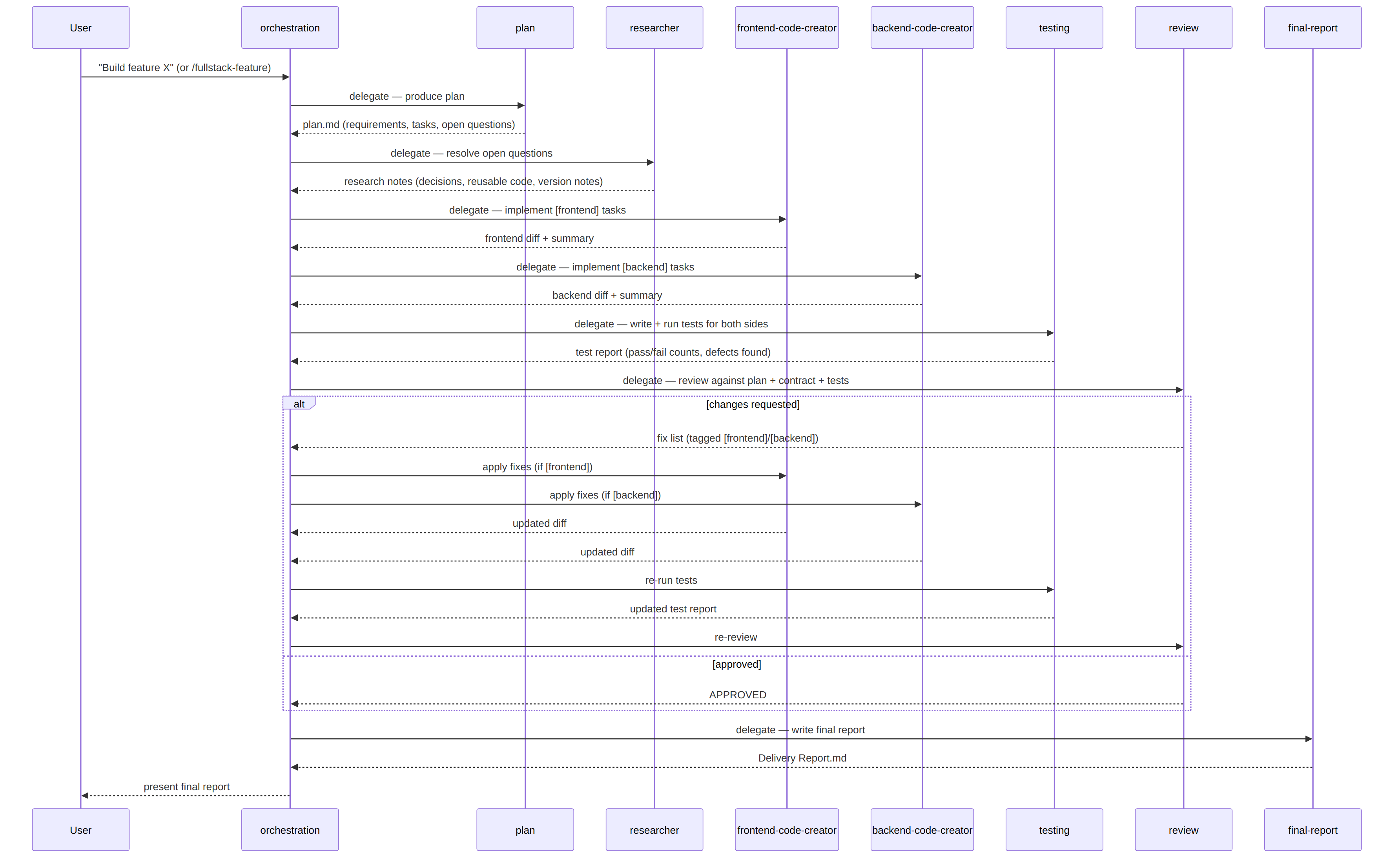

4. Sequence diagram (message-by-message)

The loop can repeat as many times as needed — the orchestrator's job is just to keep routing between review and the right creator agent until review says APPROVED.

5. Anatomy of an agent file

Every file in .github/agents/*.agent.md has two parts:

---
name: frontend-code-creator          # unique id, used for @mentions and handoffs
description: ...                    # used by Copilot to auto-select this agent
tools: ['codebase', 'edit/editFiles', 'terminal', 'search']
model: ['Claude Sonnet 5', 'GPT-5.2']  # tried in order, first available wins
user-invocable: true                 # can a human @mention it directly?
handoffs:
  - label: Send to Testing
    agent: testing
    prompt: Write and run tests for the frontend code above.
    send: false                      # false = show a button, don't auto-send
---

# Frontend Code Creator Agent
... the actual instructions/persona/rules for this agent ...

Frontmatter fields explained:

The Markdown body below the frontmatter is the system prompt for that agent — it's prepended to whatever the user/orchestrator asks it to do.

6. How delegation actually happens (two mechanisms)

There are two different runtimes this same file structure works with, and they delegate slightly differently:

1. VS Code Copilot Chat (interactive, human-in-the-loop) The orchestration agent's response ends with a handoff button (defined in its handoffs: frontmatter). You click it, it switches the active agent and sends a pre-filled prompt. This is explicit and visible — good for learning the flow or when you want to review each stage's output before continuing.

2. Copilot CLI / Copilot coding agent (autonomous) Given a single instruction, the runtime reads every agent's description and automatically decides which sub-agent to invoke for each piece of work, running them as isolated sub-agent calls and streaming subagent.started / subagent.completed events back. You don't click anything — the orchestrator's instructions (its Markdown body telling it the fixed pipeline order) are what keep the sequence disciplined, since automatic delegation alone doesn't guarantee ordering.

This is why the orchestration agent's body explicitly spells out the pipeline order and rules — that's the mechanism that makes autonomous delegation reliable, not just the description fields.

7. How to use it

Step 0 — Install

Copy the whole .github/ folder into your repository root (merge if you already have one). Commit and push.

Option A — Slash command (recommended starting point)

In Copilot Chat:

/fullstack-feature

You'll be prompted for featureRequest and optional constraints (see .github/prompts/fullstack-feature.prompt.md). This auto-invokes orchestration.

Option B — Direct @mention

@orchestration Build a "user profile" page: view/edit name, email, avatar,
backed by a Spring Boot /api/v1/users/{id} endpoint.

Option C — Copilot CLI

copilot --agent orchestration --prompt "Build the user profile feature described in ISSUE-123"

Option D — Copilot coding agent (GitHub.com, async)

Assign an issue to Copilot, or use /delegate from Copilot CLI. The cloud agent will pick up .github/agents/* the same way, minus VS Code-only fields like handoffs.

Walking through one run

1. orchestration restates your request and lists the 7-stage pipeline as a todo list.
2. It hands off to plan. Read the plan — this is your chance to catch scope problems for free, before any code exists.
3. researcher fills in the gaps. If something genuinely can't be resolved without you, it escalates back instead of guessing.
4. frontend-code-creator and backend-code-creator implement their halves.
5. testing writes tests and actually runs them — you'll see real pass/fail numbers, not a claim.
6. review either approves or sends a precise fix list back to the relevant creator agent (loop until approved).
7. final-report gives you one Markdown summary: what changed, the API contract as shipped, test results, and how to run it locally.

8. Extending or customizing

• New stage (e.g. a security-review agent): create agents/security-review.agent.md, add it to the pipeline list in orchestration.agent.md's body, and add a handoffs entry from review or testing into it.
• Different stack: update .github/copilot-instructions.md and the two instructions/*.instructions.md files' applyTo globs and rules; update the skills/*.skill.md reference packs.
• Different folder layout (not frontend/ + backend/ at root): update every applyTo glob and the paths mentioned in the agent bodies.
• Stricter human checkpoints: set send: false (already the default here) on every handoffs entry so nothing auto-advances without a click.
• Faster, less supervised runs: switch send: true on low-risk handoffs (e.g. testing → review) so they chain automatically.

9. Design principles worth remembering

1. Single responsibility per agent. If an agent's description needs "and" to explain what it does, it's probably two agents.
2. Orchestrator plans, never codes. Keeps the top-level context small and makes the pipeline auditable.
3. Review is the only agent allowed to loop work backward. Every other handoff moves forward — this prevents ping-ponging chaos.
4. Tests must be run, not assumed. The testing agent's job is specifically to report real results, which is what makes review's gate meaningful.
5. Knowledge lives in files, not memory. skills/*.skill.md and instructions/*.instructions.md mean conventions survive across sessions and don't depend on a model "remembering" a past conversation.

10. Known limitations

• handoffs is currently a VS Code-only field; it's ignored (not an error, just inert) by Copilot's cloud coding agent — ordering there relies on the orchestrator's written instructions instead.
• GitHub Copilot has no native "skills" system — the skills/ folder here is a plain-Markdown convention you maintain yourself, not something Copilot auto-indexes.
• This is a fast-moving area of the product; if a frontmatter field behaves differently than described here, check docs.github.com/en/copilot for the current spec before assuming this README is stale.
